Clods burier with bed former shaper type RSF

fixed
for tractors from 80 to 160 HP
larghezza di lavoro da 185 a 300 cm

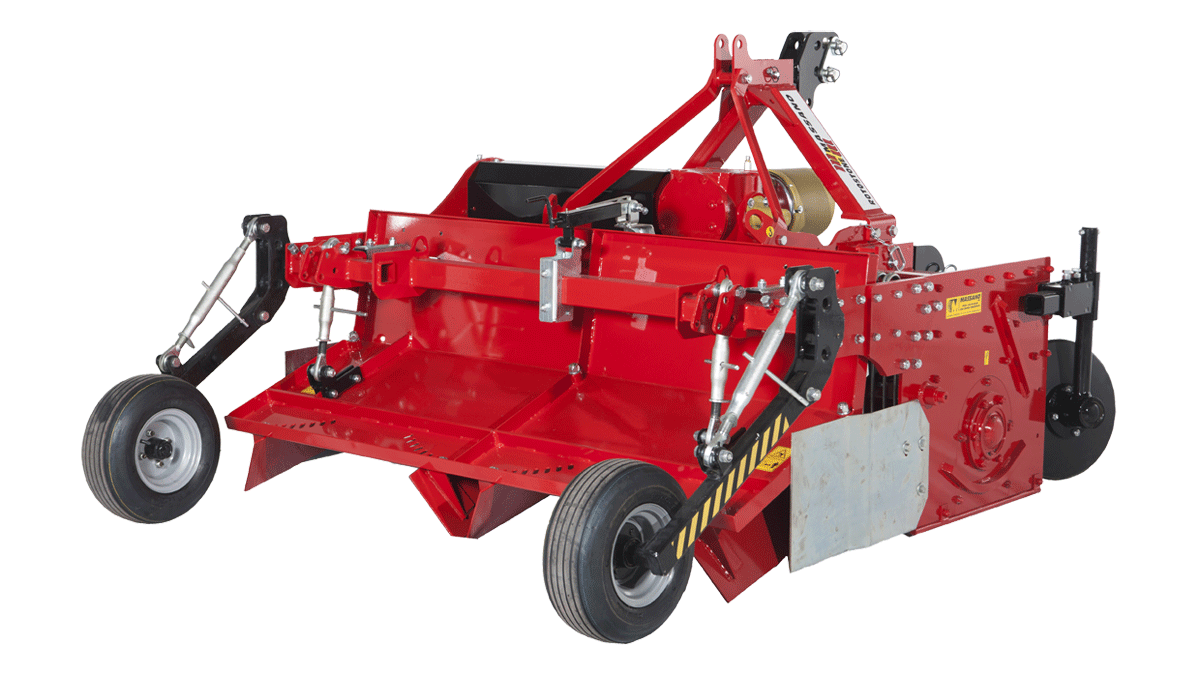

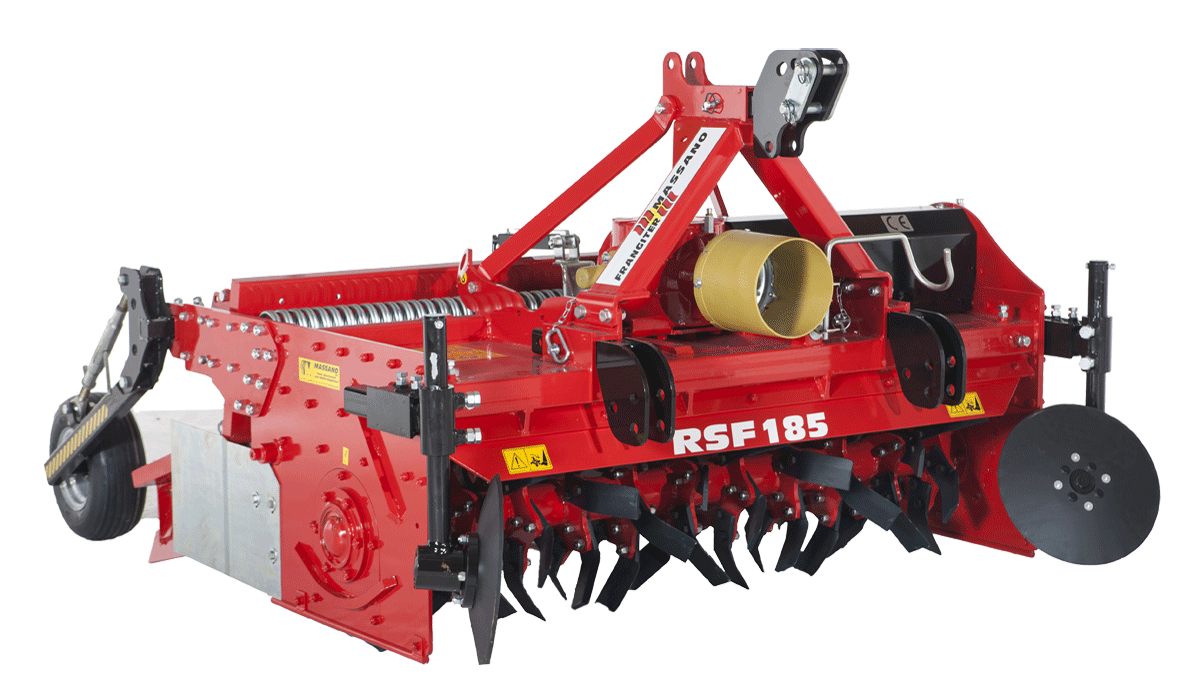

Stone burier with bed former shaper type RSF

Stone burier with bed former shaper type RSF

Massano s.n.c. - Stone burier with bed former shaper type RSF

Massano s.n.c. - Stone burier with bed former shaper type RSF



Built with a working width from 185 to 300 cm, required power from 80 to 160 HP and working depth from 15 to 30 cm. RSF clods burier with bed former shaper is a professional machine built to work in clayey and hard soils. The exclusive Frangiter rotor and its high rotation speed allow to break up the clods evenly.

The Frangiter technique and the solid side transmission by gears allow to achieve more reliability and duration of the machine during the years even in extreme conditions. Thanks to the modular structure of our machines it is possible to link to RSF clods burier with bed former shaper different accessories realized on request of our customers.




Standard Equipment:

  • 3-Point linkage cat. 2°-3°.
  • Single speed gearbox with 1000 rpm PTO*.
  • Side gears drive in oil bath.
  • 6 blades each flange type Frangiter.
  • Double frame made with special steel IMEX 700.
  • Adjustable and self- cleaned selection grill.
  • Rear Bed Former shaper with adjustable manual jacks.
  • Side ploughs adjustable.
  • Rear wheels with adjustable manual jacks.
  • Front discs conveyor ploughs.
  • Cardan shaft with safety bolt.
  • “CE” Safety guards.

*RSF 185 can be equipped with a single speed gearbox with 540 rpm PTO.

RSF can be customized to satisfy all needs. This stone burier is available in 3 models:

  • single side transmission by gears like the above mentioned features
  • double transmission by gears for tractors from 160 to 200 HP
  • model for stones with Rotostone rotor available both with single and double side transmission





Clods burier with bed former shaper type RSF





  • Clods burier with bed former shaper RSF at work

    Stone burier with bed former shaper type RSF

    Stone burier with bed former shaper type RSF

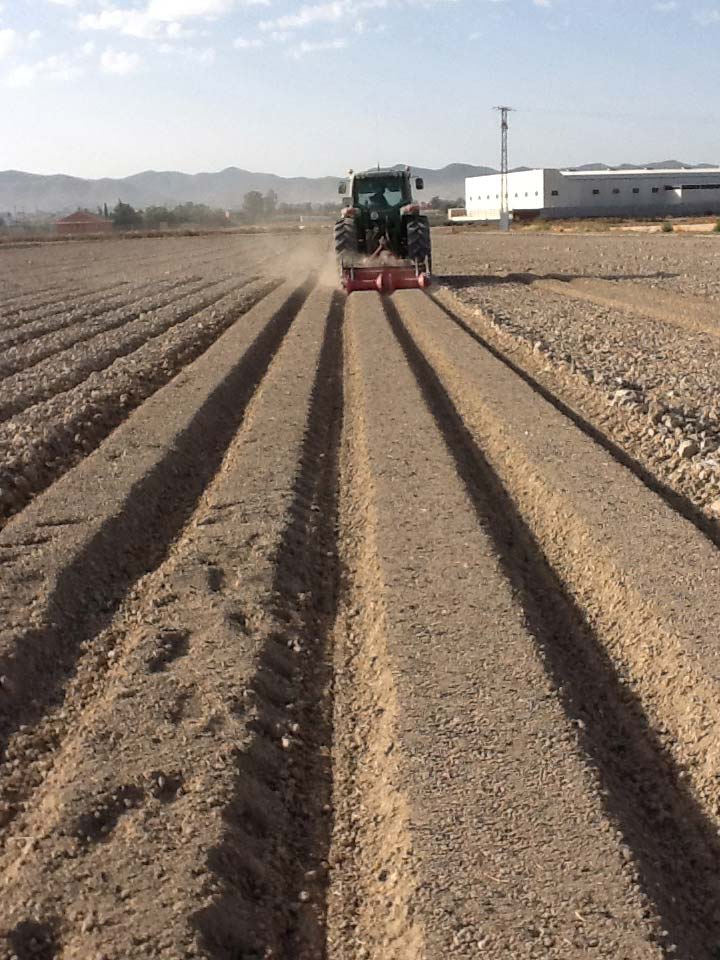

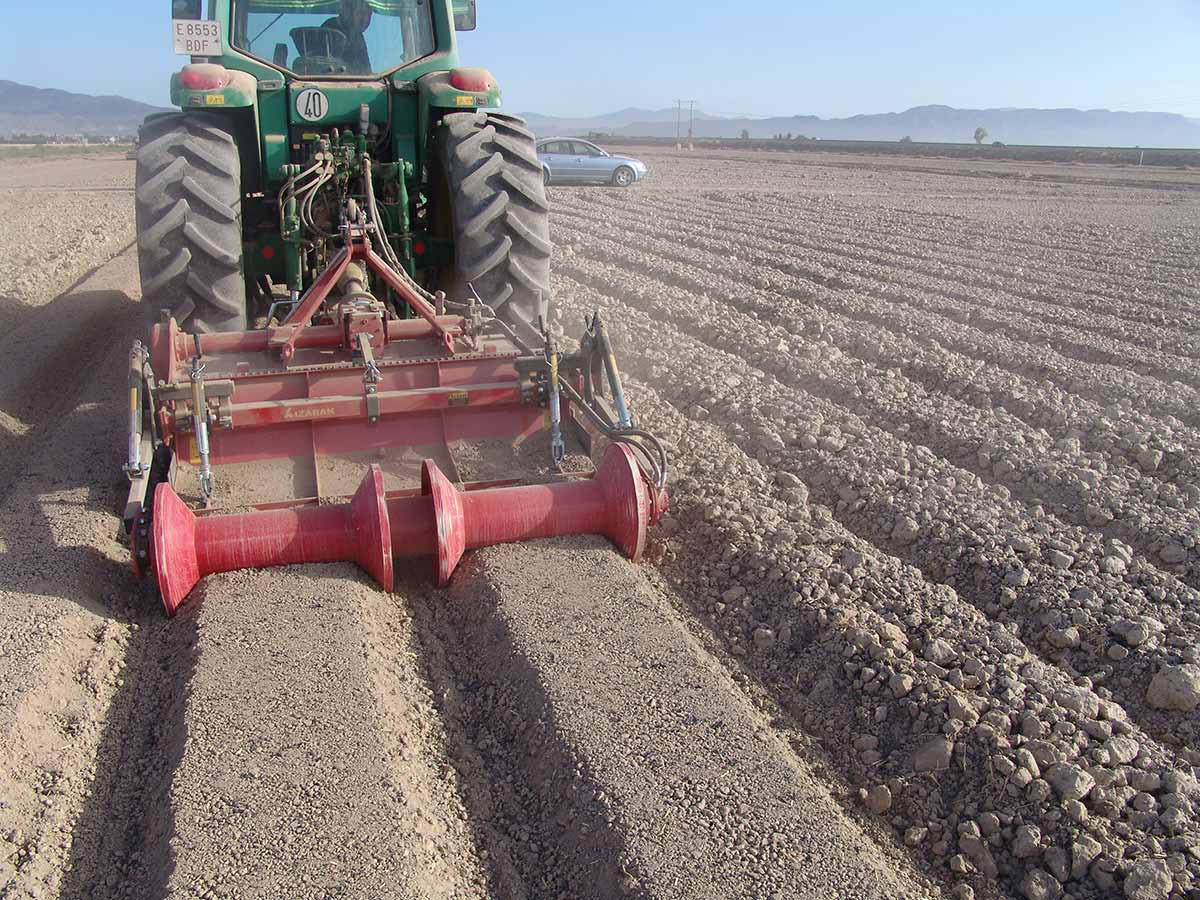

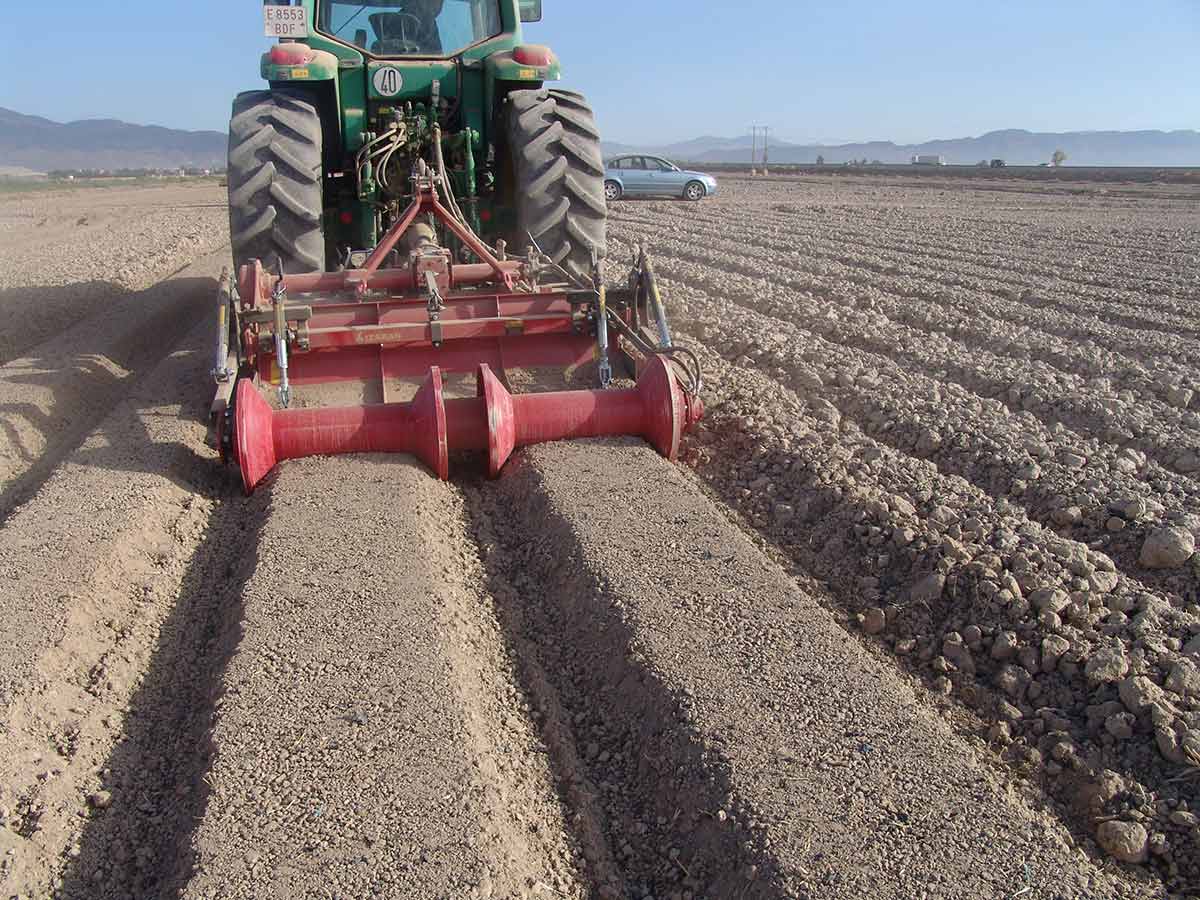

    Stone burier with bed former shaper type RSF at work

    Stone burier with bed former shaper type RSF at work

    Stone burier with bed former shaper

    Stone burier with bed former shaper

    Massano s.n.c. - agricultural machinery

    Massano s.n.c. - agricultural machinery

    Stone burier with bed former shaper

    Stone burier with bed former shaper

    Massano s.n.c. - agricultural machinery

    Massano s.n.c. - agricultural machinery

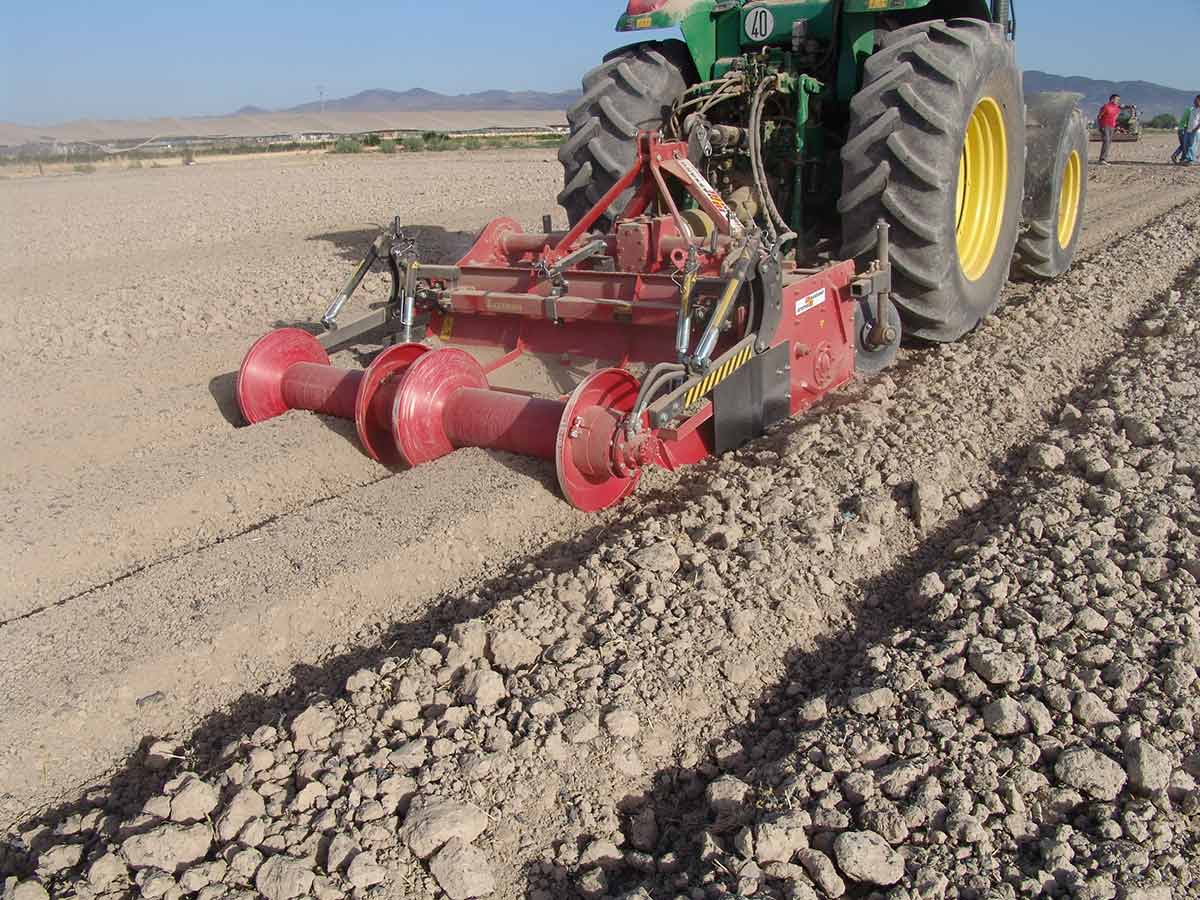

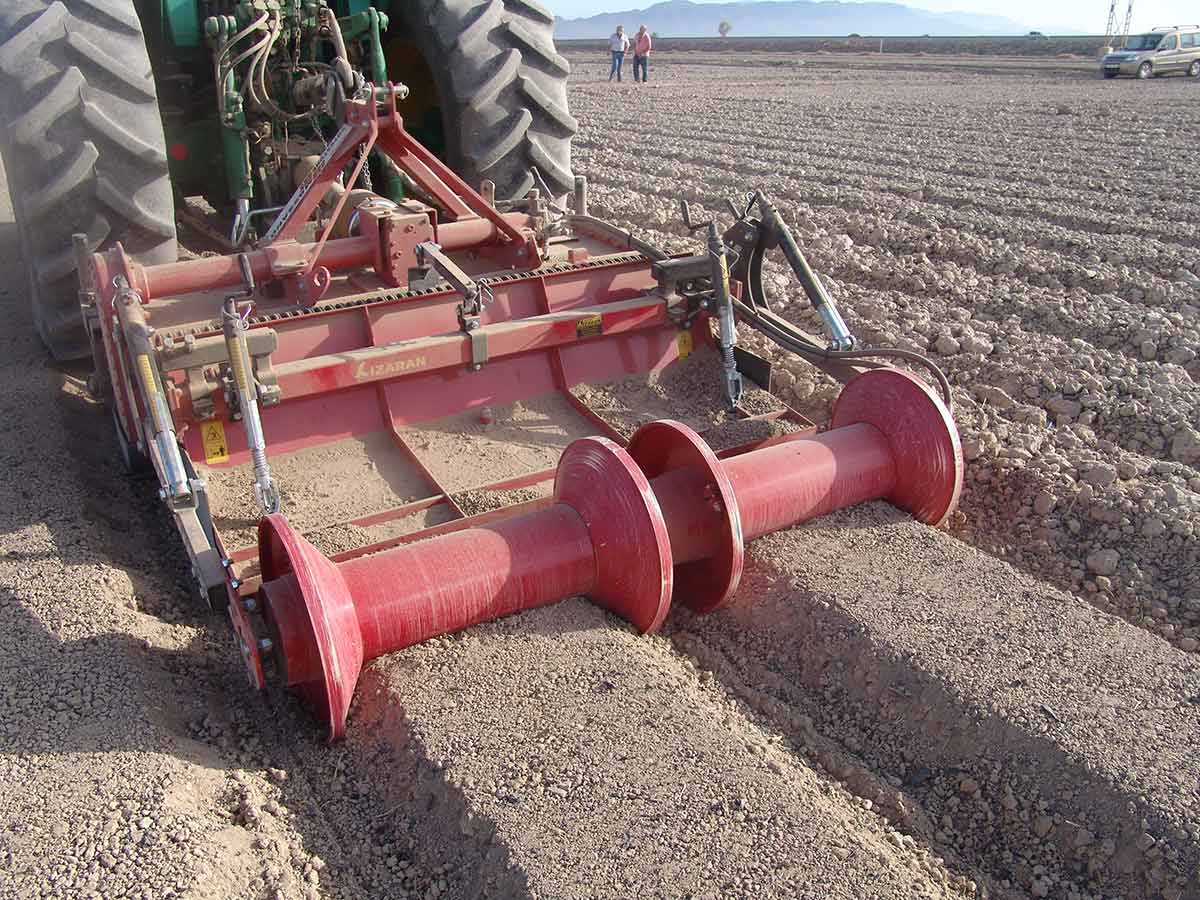

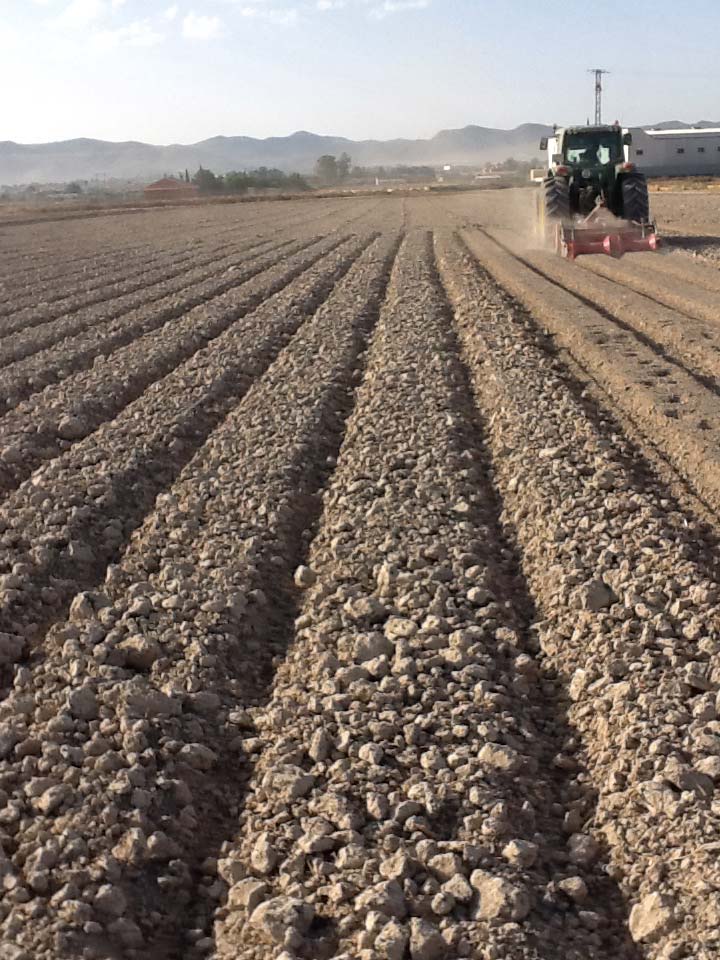

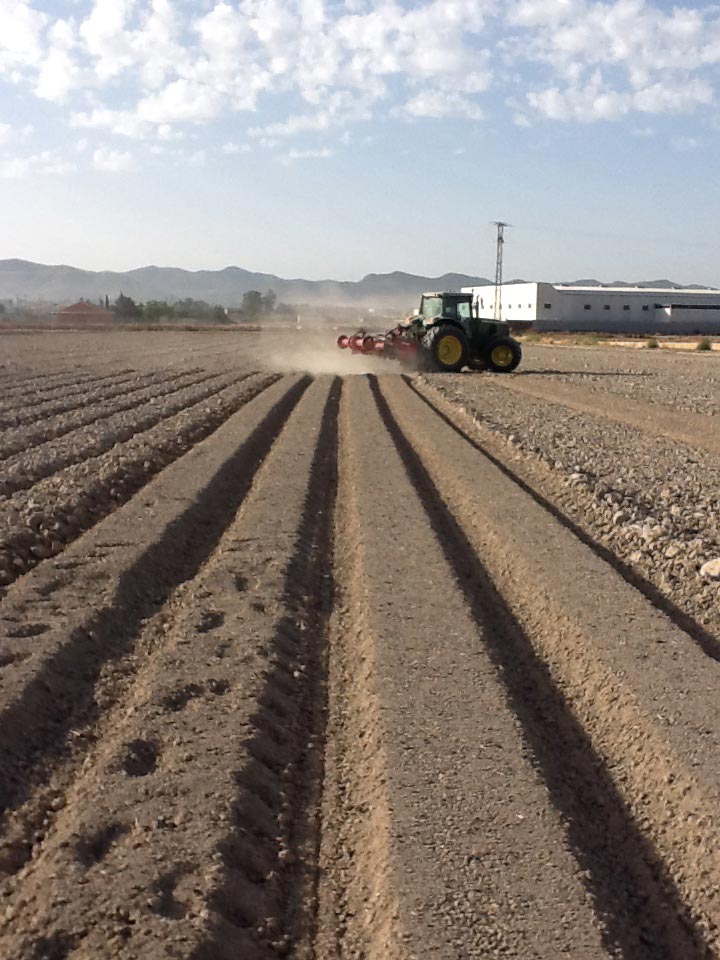

    Stone burier with bed former shaper type RSF at work

    Stone burier with bed former shaper type RSF at work

    Stone burier with bed former shaper type RSF

    Stone burier with bed former shaper type RSF

  • Clods burier with bed former shaper RSF at work

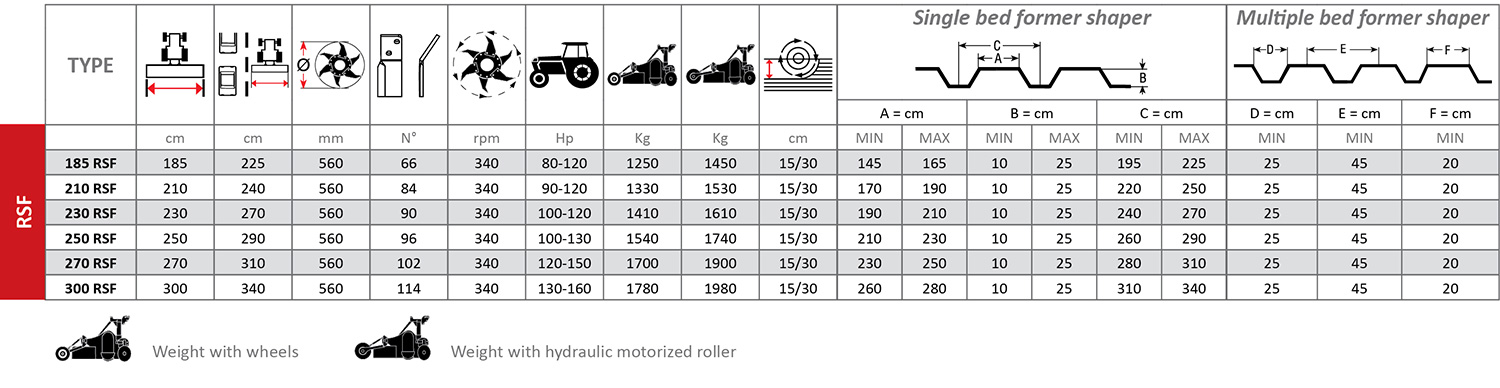

  • Download pdf technical file of clods burier with bed former shaper RSF

    Clods burier with bed former shaper type RSF
  • Under construction.
